干燥过滤筒ZRA-19217T

更新:14-10-13 13:48       点击:
产品介绍

产品简介  Product Introduction

      可更换实芯体的ZRA系列干燥过滤筒采用法兰连接密封,对设备调试和正常使用后的维护保养提供了方便,可更换滤芯式吸气过滤器最大特点是用于压缩机马达烧 毁后的系统及有大量水份进入的系统。该产品具有较高的清理吸附能力(应该安装相应的滤芯),用于氟化物制冷剂的冷冻、冷藏和空气调节装置的液体、吸气管路 中。

       ZRA take-apart filter drier with exchangeable solid core uses the flange connection to seal. That is very convenient to adjust and maintain the equipment. This steel liquid and  suction core shell  is especially suitable for use in conditions where compressor damage has occurred or heavy ingress of water in the system. It has super cleaning and absorption abilities (to be equipped the available cores). It can be used in the liquid line and suction line of the refrigeration system for cold storage and air adjusting equipment.

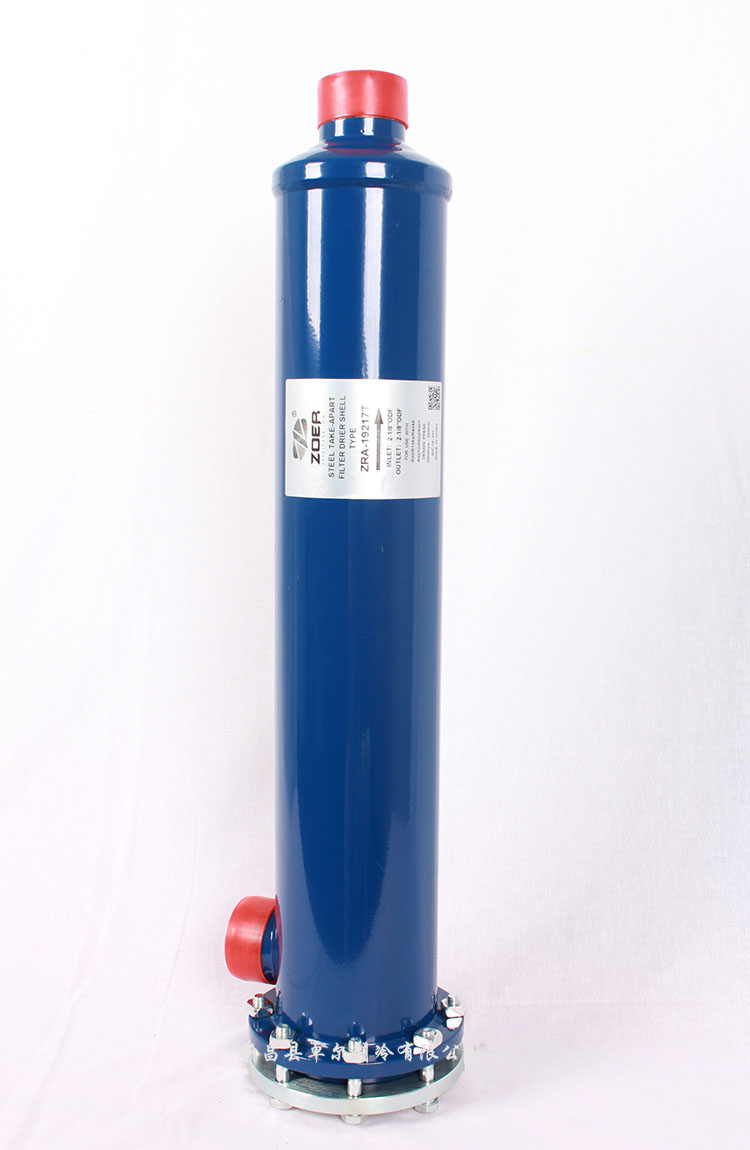

产品展示  Product Display



产品特点  Product Fedture



●可与所有品牌的48系列模制干燥滤芯和吸气滤芯及百褶式滤芯匹配

Can be matched well with all brands of 48 series of LineFilter Blocks and Suction Line filter cores

●简化的内部零件便于产品的安装,且所有零件均为有镀层的钢制件

Simple internal parts making easy installation, and all partsare steel Galvanized



产品属性  Product Attribute



产品说明 Specifications

●液管上使用可选择ZRD-48或ZRH-48干燥滤芯
Can choose ZRD-48 or ZRH-48 for liquid line
●吸气管上使用可选择ZRF-48或ZRX-48吸气滤芯
Can choose ZRF-48 or ZRX-48 for suction line
●所有型号发货时不带干燥或吸气滤芯
All the types are shipped without filter or suction line cores

产品命名方式 例如:ZRA-19217T
Nomenclature:For Example ZRA-19217T
ZRA 192 17 T
ZRA Steel Take
-Apart Series
Unit Size
(in cu. in. )
Connection
Size (in1-7/8" )
System Service?
T=Liquid Line Services???
SV=Suction Line Series

尺寸数据 Dimensional Data

进出口尺寸 芯体数量 过滤面积 外形尺寸
A B C D E
2-1/8 4 192 683 603 92 114 151
